Saunum Air L Electric Sauna Heater Package
A premium 9.8–15.2 kW electric sauna heater package with Saunum’s integrated room-temperature equalizing system, a large stone load and AirIQ Wi-Fi control for more balanced heat from floor to ceiling.
Electric sauna heat with integrated air equalization

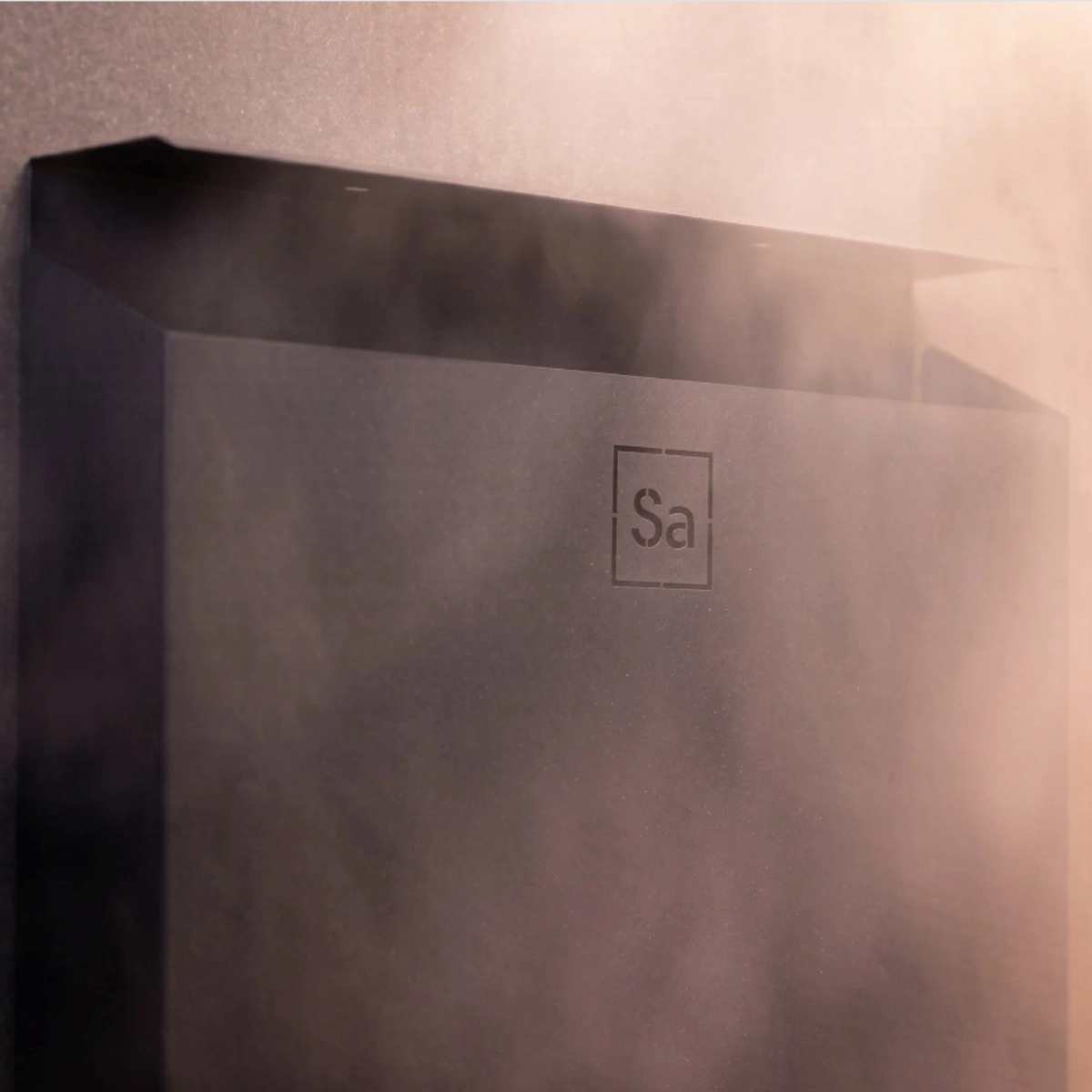

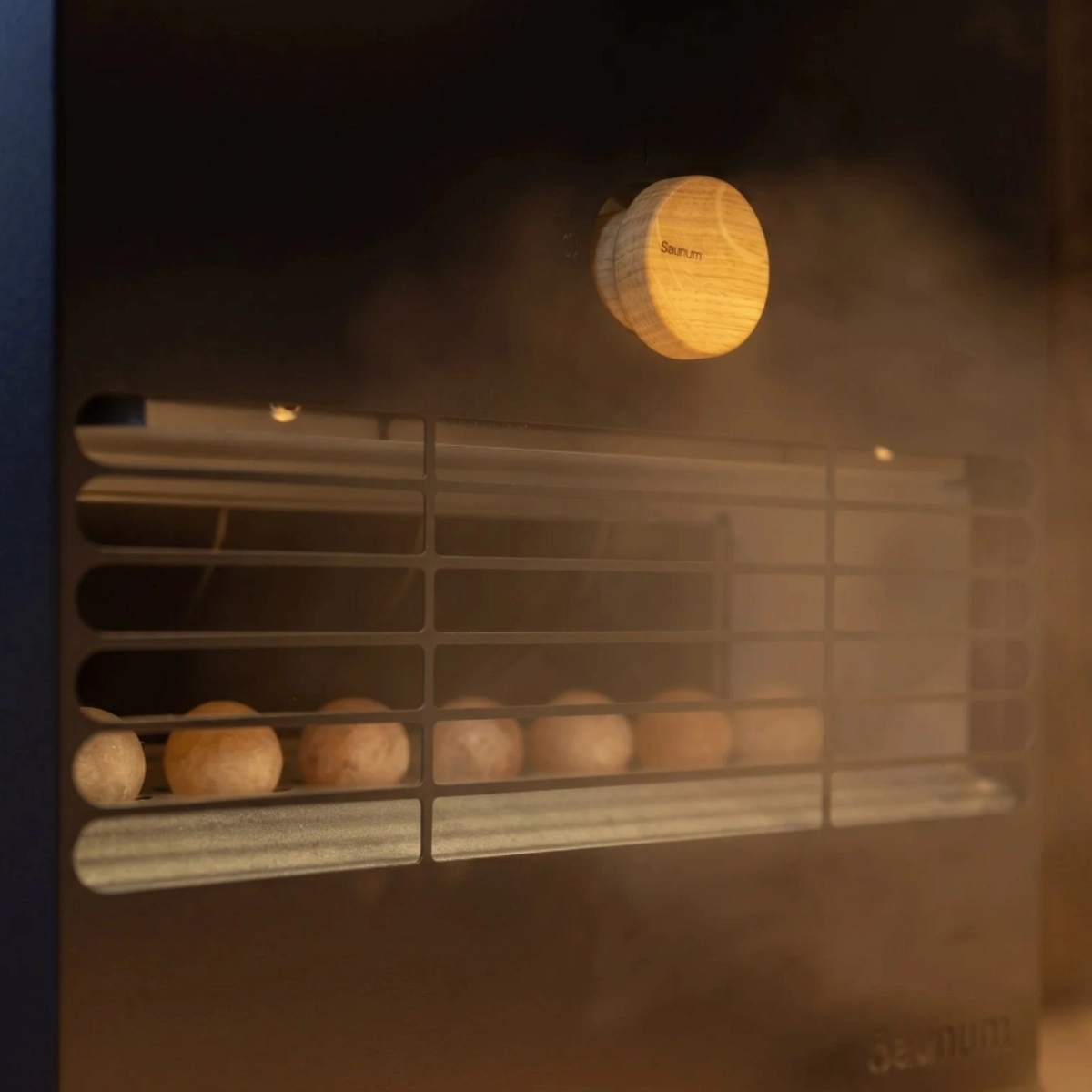

The Saunum Air L combines an electric sauna heater with a built-in room-temperature equalizing module. Instead of allowing the hottest air to remain concentrated near the ceiling, the system blends air from different levels of the sauna and recirculates it through the room for a more even temperature profile.

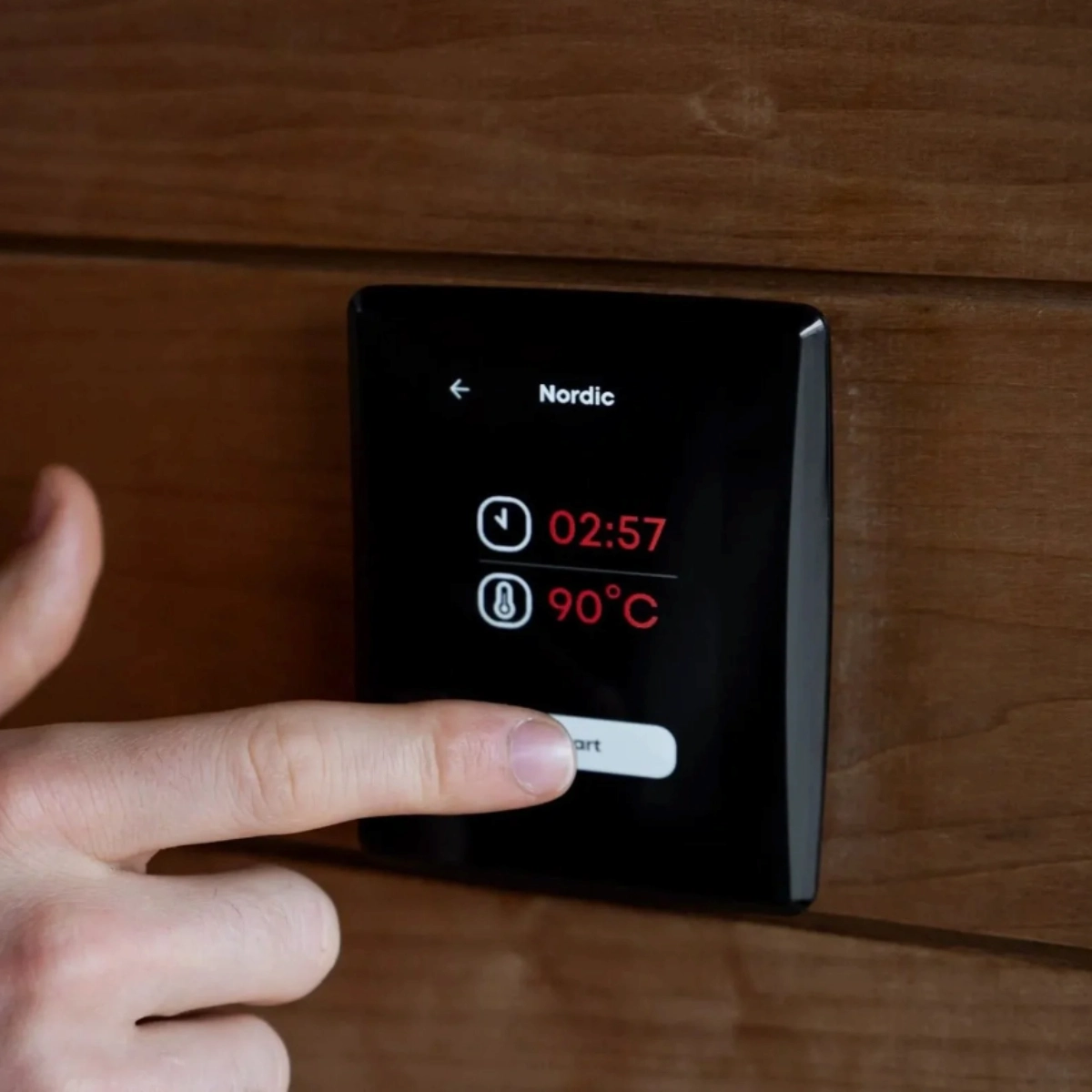

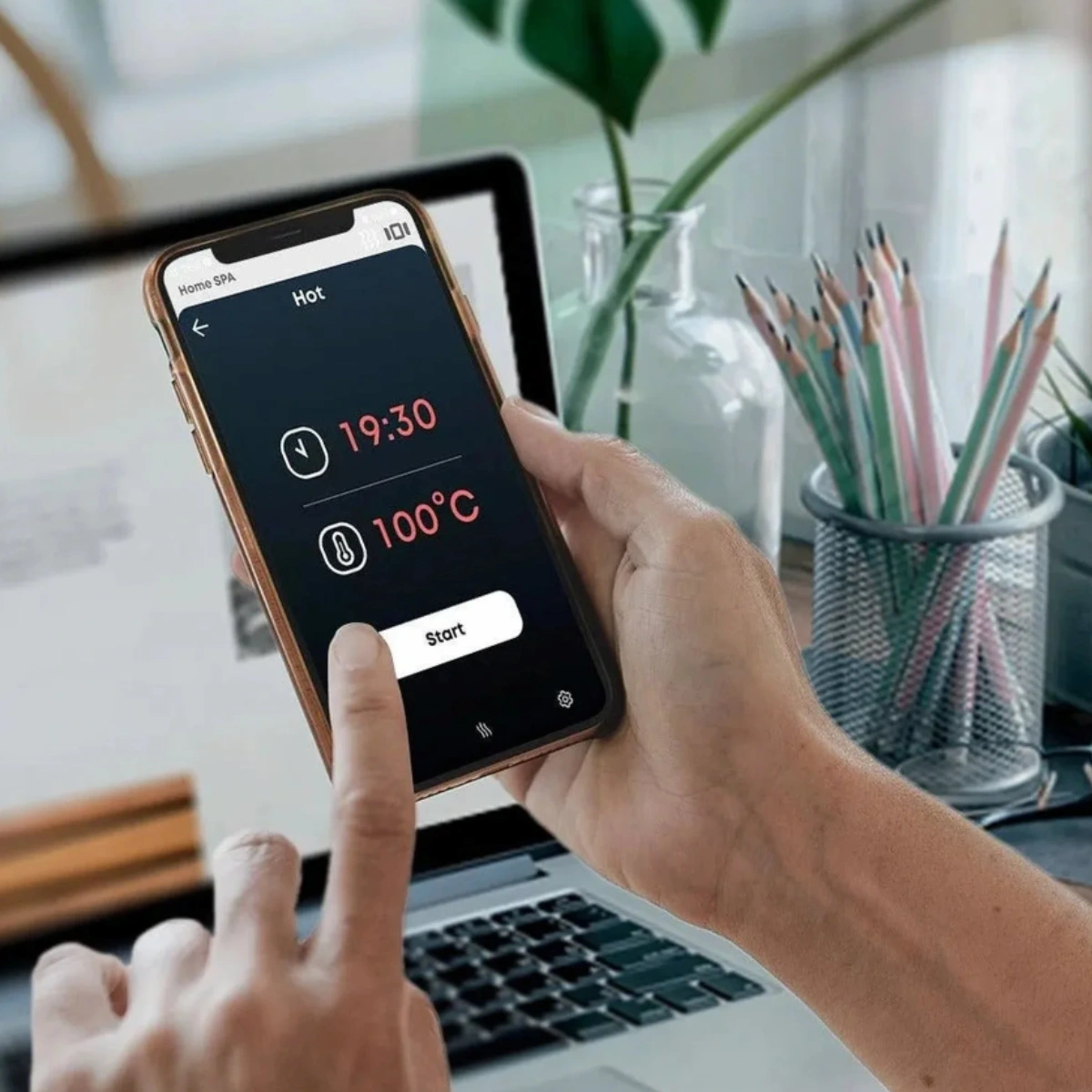

The package is offered in 9.8, 13 and 15.2 kW versions for sauna rooms ranging from 247 to 741 cu. ft., depending on the selected model. It includes the AirIQ digital Wi-Fi controller, temperature and door sensors, power unit, sauna stones and seven Himalayan salt spheres. The equalizer provides three airflow speeds, while AirIQ supports scheduling and up to three customized sauna profiles.
Saunum Air L output, room capacity and electrical requirements
| Specification | Saunum Air L |
|---|---|
| Heater type | Electric sauna heater with room-temperature equalizer |
| Available outputs | 9.8 kW / 13 kW / 15.2 kW |
| Sauna room capacity | 247–741 cu. ft., depending on model |
| Stone capacity | 412 lb |
| Temperature adjustment range | 104°F–194°F |
| Heat / steam equalizer | 3-speed air circulation system |
| Controller | Saunum AirIQ Digital Wi-Fi Control |
| Custom sauna profiles | Up to 3 |
| Heater operating time | 1–6 hours |
| Unit width | 19 in. |
| Unit depth | 15 in. |
| Minimum side / front clearance | 2 in. |
| Minimum clearance from fan output | 20 in. |
| Certifications | UL, CE and ETL rated |
Recommended room volume: 247–459 cu. ft. · Adjustable height: 72–95.5 in. · Minimum ceiling height: 72 in. · Minimum basket-to-ceiling distance: 39.4 in. · Heater weight: 147 lb · 240V / 1-phase · 41.66 A · 50 A circuit breaker · #6 + N + G wiring.
Recommended room volume: 317–565 cu. ft. · Adjustable height: 72–94.5 in. · Minimum ceiling height: 71.95 in. · Minimum basket-to-ceiling distance: 39.37 in. · Heater weight: 147 lb · 240V / 1-phase · 54 A · 70 A circuit breaker · (2) #6 + N + G wiring.
Recommended room volume: 459–741 cu. ft. · Adjustable height: 88.9–94.5 in. · Minimum ceiling height: 88.9 in. · Minimum basket-to-ceiling distance: 47.24 in. · Heater weight: 121 lb · 240V / 1-phase · 63.33 A · 80 A circuit breaker · #4 + N + G wiring.
Electrical requirements and installation clearances vary by model. Always confirm the selected Air L version against the current Saunum installation manual and applicable local electrical and building codes before wiring or construction.
